CAN/CAN FD Bus interface Kvaser Leaf v3 J1939-13 Type II

Offering excellent value, CAN/CAN FD Bus Interface Kvaser Leaf v3 J1939-13 Type II ensures reliable communication for vehicle networks where the J1939 protocol is critical.

I. Specifications of CAN/CAN FD Interface Kvaser Leaf v3 J1939-13 Type II

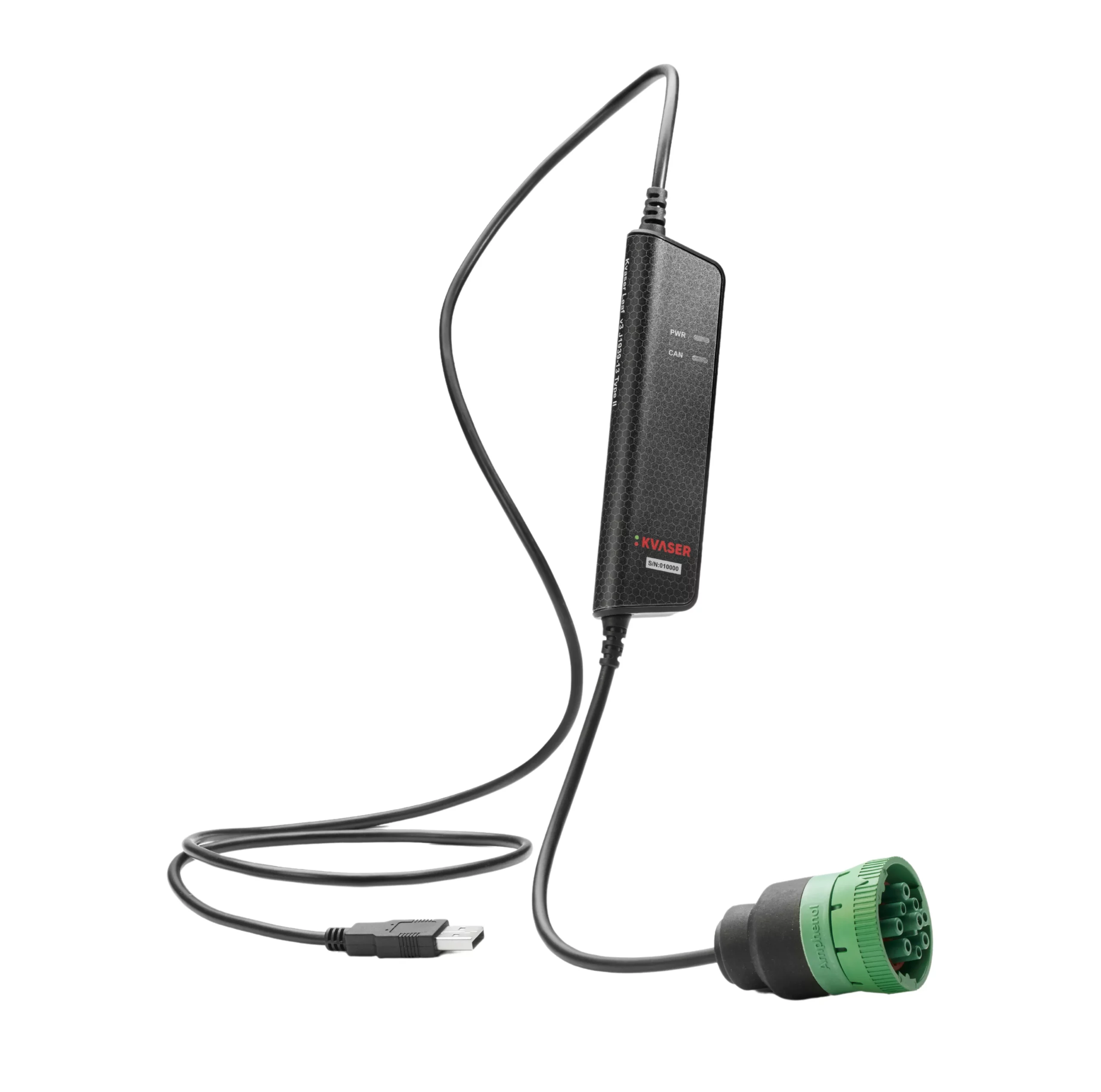

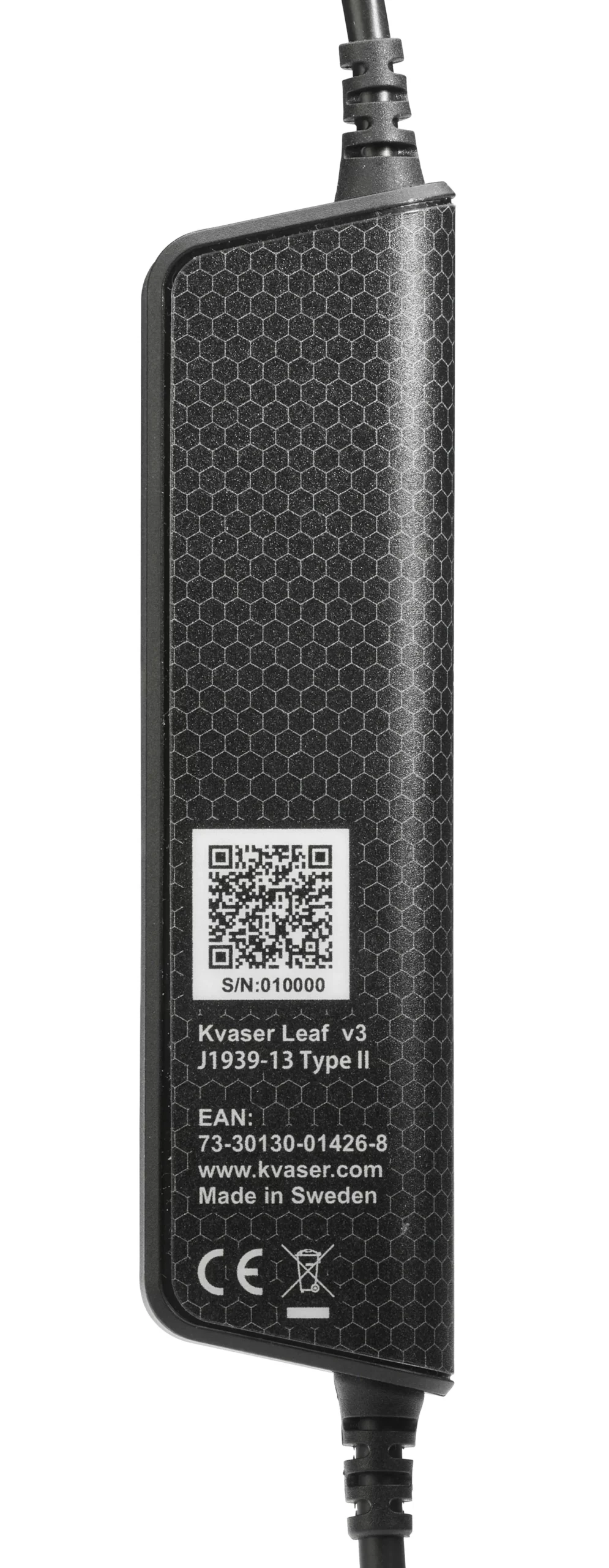

CAN/CAN FD Bus Interface Kvaser Leaf v3 J1939-13 Type II is a reliable low cost product for connecting a computer to a CAN bus network, enabling the monitoring and transmission of CAN and CAN FD data.

With a timestamp precision of 50 microseconds it handles transmission and reception of standard and extended CAN messages on the bus. It is compatible with applications that use Kvaser’s CANlib.

It features a USB Type-A connector and a 9-pin J1939-13 Type II connector; the latter is commonly used for diagnostics and communication in heavy-duty vehicles.

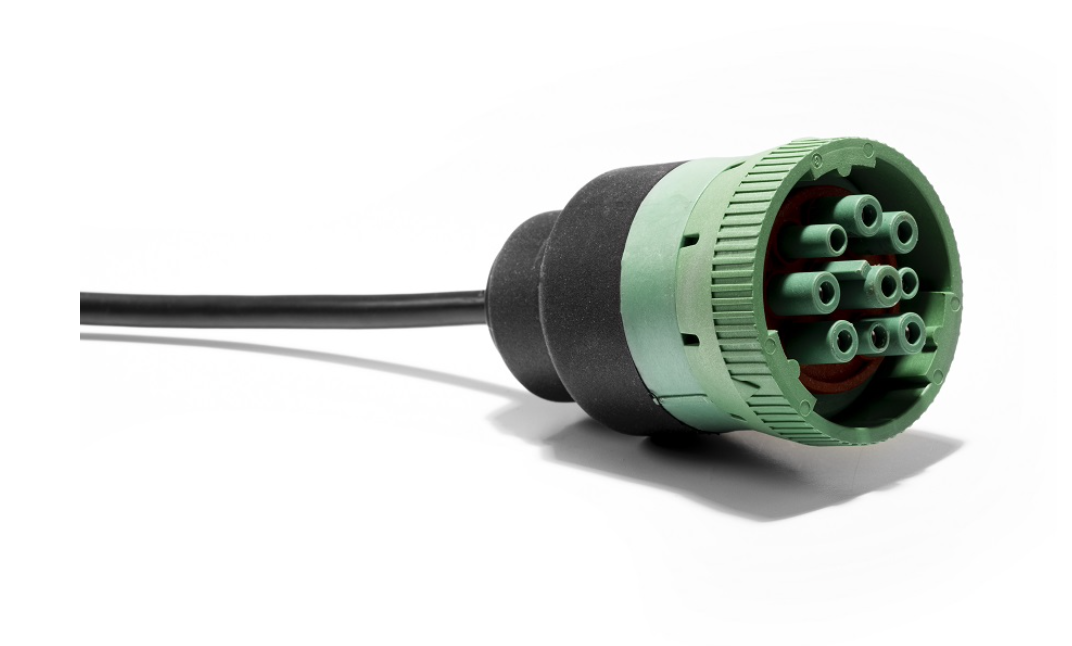

The Type II connector, colour-coded in green and supporting either 250 Kbps or 500 Kbps, is backward-compatible with the older Type I connector, colour-coded in black and limited to 250 Kbps.

MAJOR FEATURES

• USB 2.0 CAN interface.
• Powered through the USB Type-A connector.
• Compact 9-pin J1939-13 Type II connector with extra strong strain relief.
• Supports CAN FD, up to 8 Mbit/s.
• Quick and easy plug-and-play installation.
• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
• Supports silent mode for analysis tools – listen to the bus without interfering.
• 20 000 msg/s, each timestamped with a resolution of 50 μs.
• Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
• Support for SocketCAN.
• Supports simultaneous usage of multiple Kvaser interfaces.
• Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application. For software support please see our Technical Associates products and our Software Download page (kvaser.com).

II. Additional software and documentation for CAN/CAN FD Bus Interface Kvaser Leaf v3 J1939-13 Type II

• Documentation, Kvaser SDK and drivers can be downloaded for free at: kvaser.com/downloads.
• Kvaser SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Visual Basic, Python and t script language.
• Kvaser CAN hardware is built around the same common software API. Applications developed using one device type will run without modification on other device types.

III. Kvaser Leaf v3 J1939-13 Type II hardware

HARDWARE INSTALLATION

• The Kvaser Leaf v3 J1939-13 Type II may be inserted in any free USB socket on the host computer. You do not need to switch the power off before inserting or removing the device. For the Kvaser Leaf v3 J1939 13 Type II to communicate with the host computer, a compatible version of the Kvaser driver and firmware must be installed.
• The driver is installed by running the file: kvaser_drivers_setup.exe. For instructions on how to update the firmware. The latest version of the driver and firmware can be downloaded from: www.kvaser.com/download.
• The firmware is downloaded and installed directly on the Kvaser Leaf v3 J1939-13 Type II and the driver is installed on the host computer. After the driver has been installed on the host computer, the firmware may then be downloaded and installed on the Kvaser Leaf v3 J1939-13 Type II.

USB CONNECTION

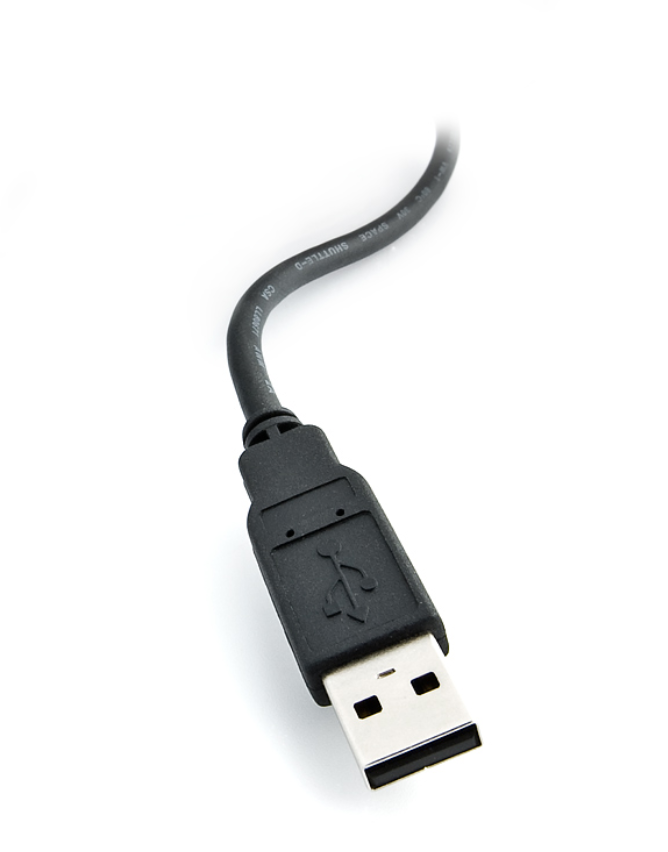

• The Kvaser Leaf v3 J1939-13 Type II has a standard USB type “A” connector.

CAN CONNECTION

• The Kvaser Leaf v3 J1939-13 Type II has one CAN channel in a 9-pin J1939-13.

POWER SUPPLIES

• The Kvaser Leaf v3 J1939-13 Type II is powered from the USB port.

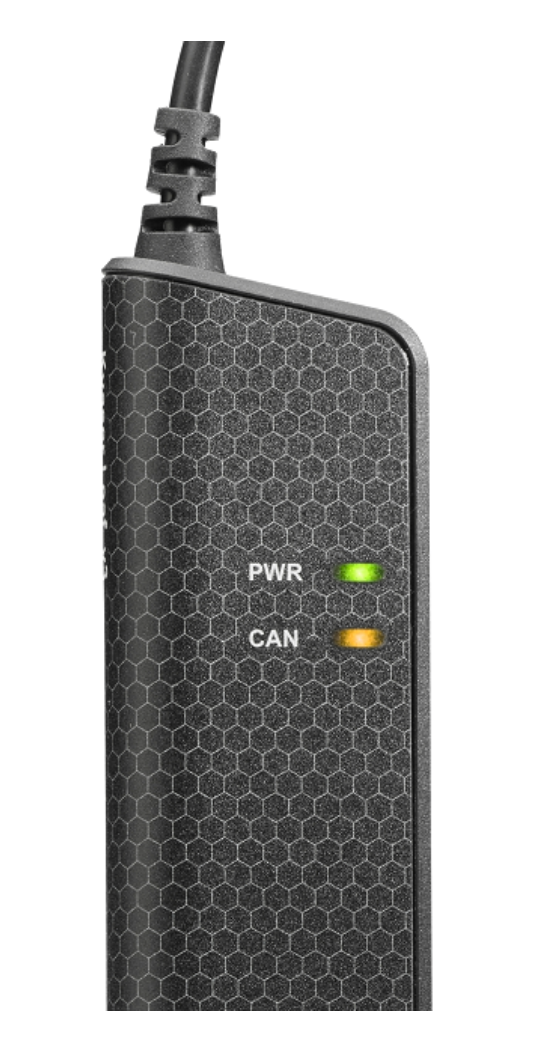

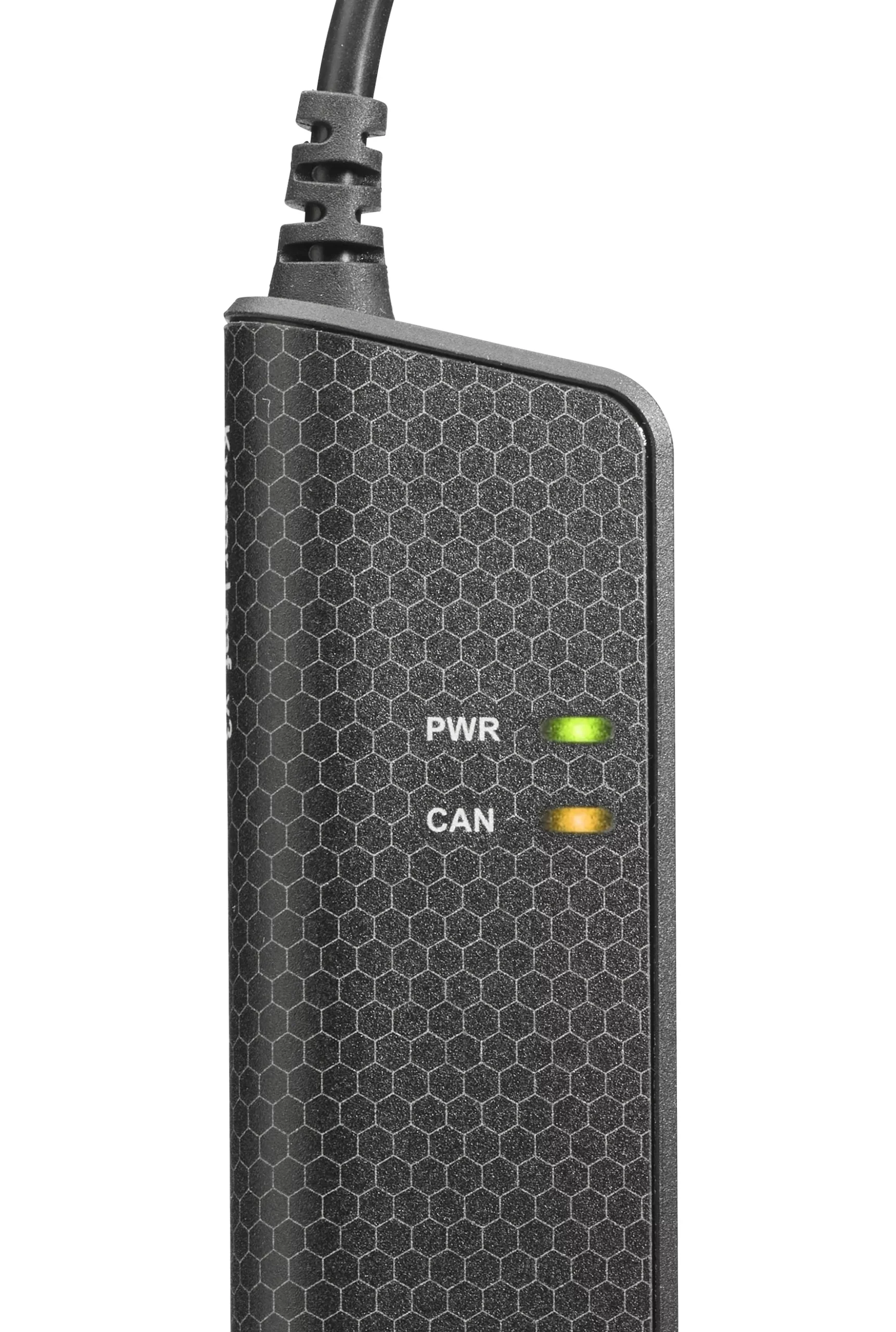

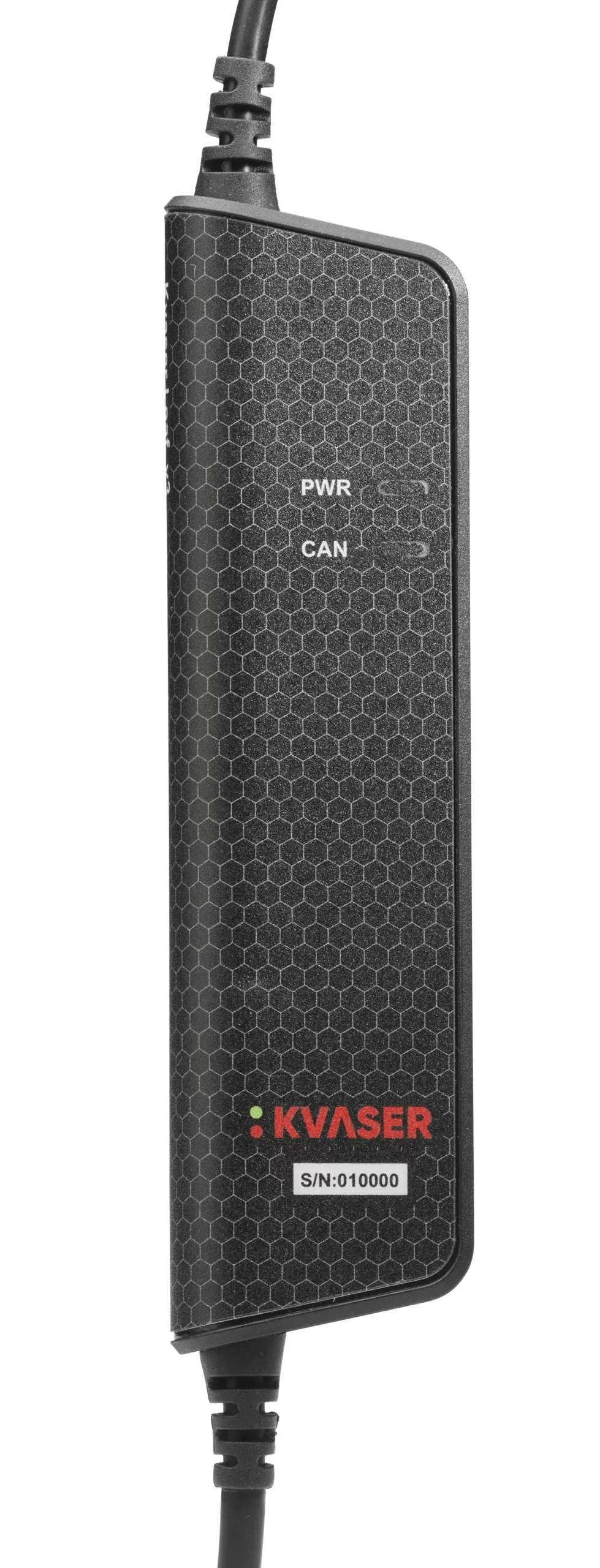

LED INDICATORS

• The Kvaser Leaf v3 J1939-13 Type II has two LEDs.

UPDATING THE FIRMWARE

• For the Kvaser Leaf v3 J1939-13 Type II to communicate with the host computer, compatible versions of the Kvaser CANlib (including driver) and firmware must be installed.
• The latest versions of firmware and drivers can be downloaded for free at: kvaser.com/download.
• Connect the Kvaser Leaf v3 J1939-13 Type II to your host computer with the USB cable and start the update.exe application. A window opens showing the Firmware Update Instructions; read and follow those carefully.
• To check the current firmware version, open “Kvaser Device Guide” which can befound in the Control Panel. Select “Kvaser Leaf v3 J1939-13 Type II” in the tree view to the left, and click on the channel. The firmware revision information now appears in the right half of the window.

Technical data of CAN/CAN FD Bus Interface Kvaser Leaf v3 J1939-13 Type II
