Coating thickness measuring meters List-Magnetik TOP-CHECK Ferro

Price: Contact

Model	TOP-CHECK Ferro
Manufacturer	LIST-MAGNETIK
Power supply	1 x 1.5 V AA Mignon
Weight	76 g
Size	Ø 28 x 95 mm
Condition	Stocking
Warranty	24 months

Details description
Specifications
Video
Download document
Accessory

Coating thickness measuring meters List-Magnetik TOP-CHECK Ferro compact, lightweight gages are barely larger than a probe, making them ideal for on-site applications in hard-to-reach locations.

I. Specifications of Coating thickness meters List-Magnetik TOP-CHECK Ferro

Coating thickness meters List-Magnetik TOP-CHECK Ferro with the integrated, unique 90° pivotable probe help to you can always make precise measurements.
For trouble-free measurements in harsh environments, the handy metal housing is splash-proof to IP 64. Optionally, a coating thickness gage is available with flow protection. A wear-resistant ruby protects the probe for long life during frequent measurements on rough surfaces.
With a single button and self-explanatory multi-language menu navigation, the Coating thickness measuring meters List-Magnetik TOP-CHECK Ferro are very easy to use.
TOP-CHECK Ferro can be used on iron and steel substrates. It uses a magneto-inductive probe to measure layers of paint, varnish, plastic, rubber, ceramics, galvanized and electroplated coatings (except nickel) in accordance with ISO 2178.
To further process your measurement data, you can connect your TOP-CHECK to mobile Android and iOS devices. Or you can communicate with a Windows PC. This is made possible by wireless technology. With the Lima Connect app, you can manage projects and assign measuring points on a photo. Measurement results can be statistically evaluated and graphically displayed. The app is free for Android, iOS and Windows.

II. Scope of supply of Coating thickness measuring meters List-Magnetik TOP-CHECK Ferro

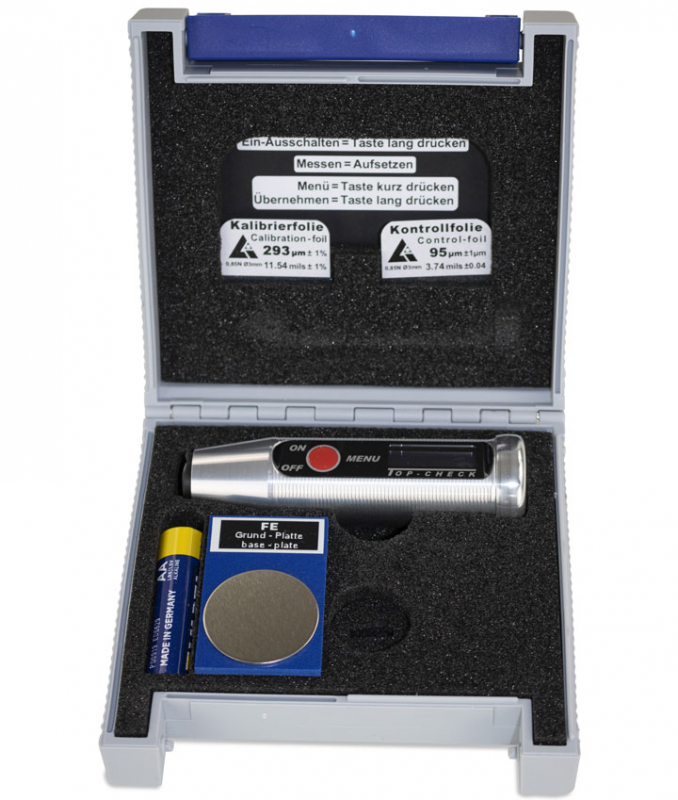

TOP-CHECK Ferro with calibration base plate FE, 2 calibration foils, spare battery and case, including calibration certificate. The app for Android, iOS and Windows is free.

May-do-do-day-cua-lop-phu-list-magnetik-top-check-ferro

View More Compact

Technical data of Coating thickness measuring meters List-Magnetik TOP-CHECK Ferro

Applications	Measurement of paint, varnish, plastic and galvanic coatings on steel (ISO 2178)
Measuring probe	pivotable by 90°
Measuring range	0-5000 µm
Smallest Area	ø 4 mm
Smallest curvature radius	concave 38 mm, convex 4 mm
Calibration value	300 µm
Accuracy	less than 100 µm ± 1 µm, 100-1000 µm: ± 1%, 1000-2000 µm: ± 3%,> 2000 µm: ± 5%
Resolution	1-100 µm: 0.1 µm, 100-1000 µm: 1 µm, > 1000 µm: 10 µm
Measuring units	µm and mils
Ambient temperature	0 – 50° C
Display	illuminated high contrast graphic OLED display
Menu navigation	English, German, French, Italian, Spanish, Hungarian, Polish, Dutch
Data logger	4000 measured values flexibly divisible
Statistical evaluation and display	count / maximum / minimum / average / standard deviation
Interface	wireless interface for communication with Android, iOS and Windows
Power supply	1x 1.5 V AA Mignon
Operating time	approx. 50 hours
Dimensions	Ø 28 x 95 mm
Weight	76 g (with battery)
Warranty	24 months on the device, 3 months on the probe
Customs tariff no	9031 8020
