Coating thickness meter List-Magnetik TOP-CHECK

Price: Contact

Model	TOP-CHECK Dual/ TOP-CHECK Ferro
Manufacturer	LIST-MAGNETIK
Power supply	1x 1,5 V AA Mignon
Weight	76 g
Size	Ø 28 x 95 mm
Condition	Stocking
Warranty	24 months

With a single button and self-explanatory multi-language menu navigation, the Coating thickness meter List-Magnetik TOP-CHECK are very easy to use.

Coating-thickness-meter-list-magnetik-top-check

I. Specification of Coating thickness gauge List-Magnetik TOP-CHECK

The TOP-CHECK coating thickness gauges from List-Magnetik feature a unique 90° pivotable probe that allows you to make accurate coating thickness measurements every time. These compact, lightweight gages are barely larger than a probe, making them ideal for field applications in hard-to-reach areas.
The handy metal housing is IP 64 splash-proof for trouble-free measurements in harsh environments. Optionally, a coating thickness gauge is available that is protected against flowing water. The probe is equipped with a wear-resistant ruby rod for long life during frequent measurements on rough surfaces.

A coating thickness gauge List-Magnetik TOP-CHECK is typically used in the quality assurance of coating processes.
For example, to determine the thickness of a paint coating, when testing vehicles or steel structures, or in fire protection (determining the coating thickness of steel doors). But it's not just a paint thickness gauge; it can also reliably measure rubber coatings, anodized aluminum, and electroplated coatings.

Coating-thickness-meter-list-magnetik-top-check

Uses a combined probe to measure insulating layers of paint, varnish, plastic, rubber, ceramics, and galvanic coatings (except nickel) using the magnetic induction method. Coating thickness meter List-Magnetik TOP-CHECK Dual is used on iron and steel substrates.
This Layer thickness gauge also suitable for measuring insulating coatings (paint, plastic, etc.) using the eddy current method on non-ferrous metals such as aluminum, brass, copper, bronze, and non-magnetic stainless steels in accordance with ISO 2178 and ISO 2360.

Can be used on iron and steel substrates.
Coating thickness meter List-Magnetik TOP-CHECK Ferro uses a magneto-inductive probe to measure layers of paint, varnish, plastic, rubber, ceramics, galvanized and electroplated coatings (except nickel) in accordance with ISO 2178.

To further process your measurement data, you can connect your TOP-CHECK to mobile Android and iOS devices. Or you can communicate with a Windows PC. This is made possible by wireless technology.

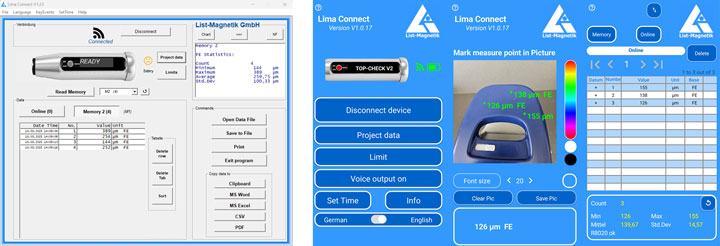

With the Lima Connect App, you can manage projects and assign measuring points on a photo. Measurement results can be statistically evaluated and graphically displayed. The app is free for Android, iOS and Windows.

Coating-thickness-meter-list-magnetik-top-check

Coating-thickness-meter-list-magnetik-top-check

Coating Thickness Meter TOP-CHECK Dual: with calibration base plates FE+NFE, 2 calibration foils, spare battery and case, including calibration certificate. The app for Android, iOS and Windows is free.
Coating Thickness Meter TOP-CHECK Ferro: with calibration base plate FE, 2 calibration foils, spare battery and case, including calibration certificate. The app for Android, iOS and Windows is free.

Applications	Measurement of paint, lacquer, plastic and galvanic coatings on steel (ISO 2178) / insulating coatings on non-ferrous metals (ISO 2360; only with TOP-CHECK Dual), Automatic detection of base material
Measuring probe	pivotable by 90°
Measuring range	on steel and iron 0-5000 µm, on NF metals 0-2000 µm
Smallest measuring area	TOP-CHECK Dual ø 8 mm, TOP-CHECK Ferro ø 4 mm
Minimum radius of curvature	concave 38 mm, convex TOP-CHECK Dual 6 mm, TOP-CHECK Ferro 4 mm
Calibration value	300 µm
Accuracy	below 100 µm ± 1 µm, 100-1000 µm: ± 1 %, 1000-2000 µm: ± 3 %, > 2000 µm: ± 5 %
Resolution	1-100 µm: 0.1 µm, 100-1000 µm: 1 µm, > 1000 µm: 10 µm
Measuring units	µm and mils
Ambient temperature	0 – 50° C
Display	illuminated high-contrast graphic OLED display
Menu navigation	English, German, French, Italian, Spanish, Hungarian, Polish, Dutch
Data logger	4000 measured values flexibly divisible
Statistics	count / maximum / minimum / average / standard deviation
Interface	wireless interface for communication with Android, iOS and Windows
App for Android, iOS, Windows	free of charge via Google Play Store, Apple App Store, List-Magnetik website
Power supply	1x 1.5 V AA Mignon
Operating time	approx. 50 hours
Dimensions	Ø 28 x 95 mm
Weight	76 g (with battery)
